K Series Rotary Vane Hoists

ROTARY VANE MOTOR

The industry standard in air hoists, rotary vane motors provide an economical, easy to maintain solution for the majority of fast, rugged applications. These easy to operate hoists can be removed without disturbing brakes, valving, or gearing, while highly reliable spring-loaded vanes insure immediate response after start.

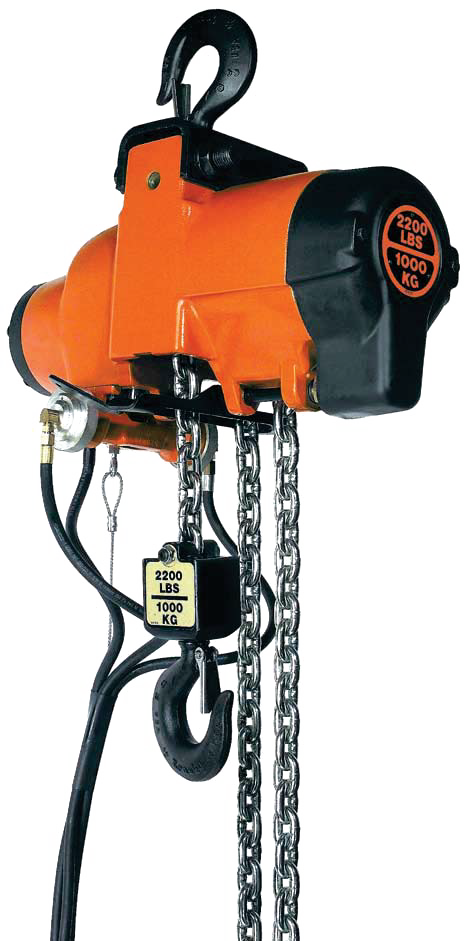

K1 Rotary Vane Motor | Air Hoists

General Details:

  • Capacity 2200-8800#
  • Air Inlet: 1/2” NPT (use 3/4” I.D. Hose)
  • Performance rated at 90 psig (6 bar/620 kPa) air pressure.
  • Air Consumption 75 cfm (.71 m3/min.) at rated load.
  • 10 ft standard lift

Standard Equipment:

  • Control Length: 5ft
  • Chain Length: 10 ft

Options:

  • Chain Container
  • Auxiliary Cable
  • Piped Exhaust Adapter
  • Hoistractor Connection Kit

MOUNTS

  • Hook
  • Lug
  • Trolley

CONTROLS

  • Rope
  • Pendant
  • No Control

CHAIN

  • Link

HOOKS

  • Standard
  • Bullard

Looking for K1 Series hoist chain?

If you are looking for the K1 Series replacement or additional chain for your hoist, we can supply you with the chain you need.  Contact us for support today!

What type of chain do I need?

K1 Series hoist chain options:

Link:

  • Product #: 513131
  • Chain Type: Link (Zinc Plated)

Standard:

  • Product #: 542040
  • Chain Type: Standard Link
k5 Gardner Denver Rotary Hoist

K5 Rotary Motor | Air Hoists

General Details:

  • Capacity 550-2200#
  • Air Inlet: 1/2” NPT (use 3/4” I.D. Hose)
  • Performance rated at 90 psig (6 bar/620 kPa) air pressure.
  • Air Consumption 75 cfm (2.12 m3/min.) at rated load.
  • 10 ft standard lift

Standard Equipment:

  • Control Length: 5ft
  • Chain Length: 10 ft

Options:

  • Chain Container
  • Auxiliary Cable
  • Air Strainer Intake
  • Piped Exhaust Adapter

MOUNTS

  • Hook
  • Lug
  • Trolley

CONTROLS

  • Rope
  • Pendant
  • No Control

CHAIN

  • Roller
  • Link

HOOKS

  • Standard
  • Bullard

Looking for K5 Series hoist chain?

K5 Series chain comes in a variety options.  If you need helping finding the right chain, please contact our sales staff and we can locate the correct parts for your hoist.  Contact us for support today!

What type of chain do I need?

K5 Series hoist chain options:

Link:

  • Product #: 522893
  • Chain Type: Link
  • Product #: 536462
  • Chain Type: Link (Zinc Plated)

Roller:

  • Product #: 10356
  • Chain Type: Roller Chain
