7 Series Hoist

7 SERIES HOIST

“Monkey on a String”

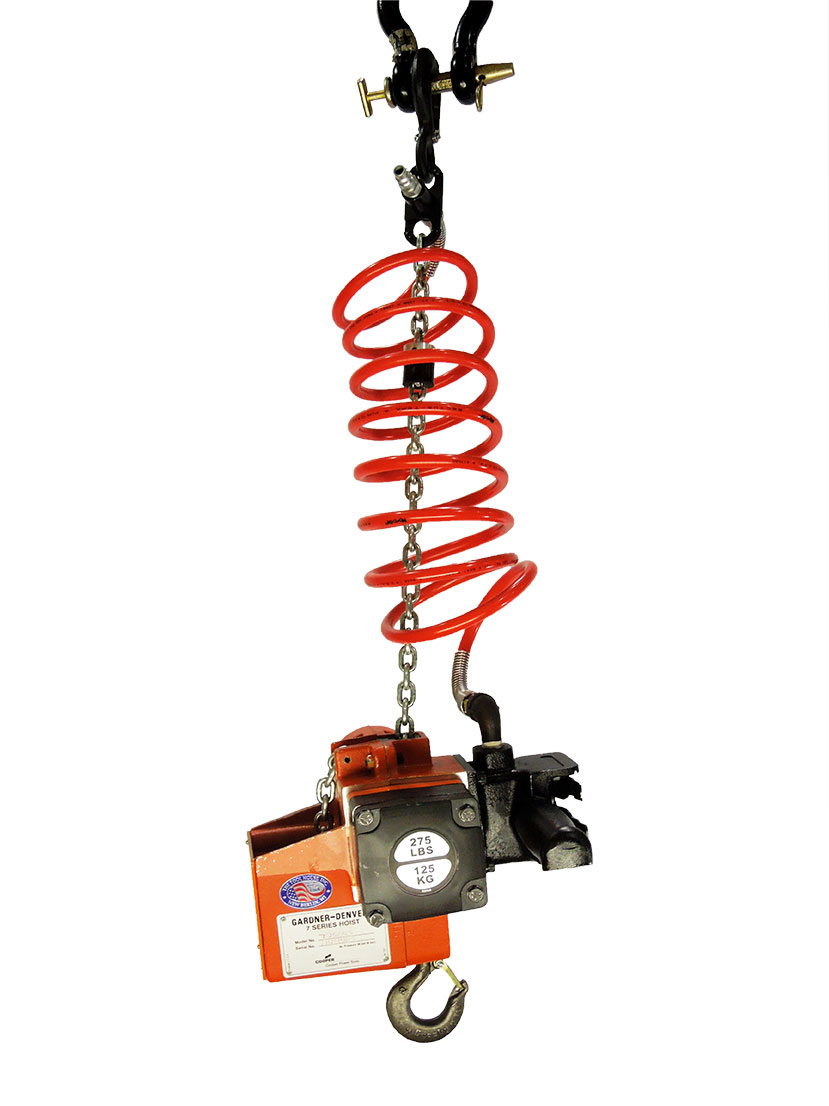

The smooth running Gardner-Denver 7 series hoists is a cornerstone of any lightweight material handling application. The monkey on a sting is  lightweight at only 24 lbs. It is a compact hoist that is a perfect solution for an endless number of low lift height applications. Often found on loading docks, in shipping or receiving areas, or mounted above parts washers or tooling fixtures, this simple-to-use, portable hoist provides an economical and ergonomic solution for increasing worker productivity.

  • null

    AMBIDEXTROUS CONTROLS

    The conveniently positioned thumb controls allow for right or left handed operation.

  • null

    SELF COOLING

    Self cooling and adjusting disc brake provides smooth stops and starts through 8 ft. of lift

  • null

    LIGHTWEIGHT

    At only 24# this hoist is portable and can be moved to different stations.

TECHNICAL SPECS


General:

  • Air Inlet: 3/8″ NPT (use 1/2″ I.D. Hose)
  • Performance rated at 90 psig (6 bar/620 kPa).
  • Air Consumption 40 cfm (1.i3m3/min.) at rated load

Standard Equipment:

  • Hook mounted air hoist
  • Built-in chain container

MOUNTS

Hook Only

CONTROLS

Fully Integrated Controls

CHAIN

Self Contained Chain

HOOKS

Bullard Style
